PVC hexagonal gabion basket
Contact CHENGSEN for Shipping, delivery, and payments information.
Products Category
Tag list
- 产品描述
-
Product Introduction
PVC hexagonal gabion is a hexagonal mesh cage made of PVC coated steel wire, mainly used in soil and water conservation and environmental protection projects. The characteristics of this gabion are the material used - PVC coated steel wire, which is covered with a layer of PVC protective layer on the surface, which can greatly increase the protection in highly polluted environments, and through the choice of different colors, it can blend into the surrounding environment.
Features
Good flexibility and adaptability: PVC hexagonal gabion basket has excellent flexibility and ductility, can adapt to slight changes in terrain, and can maintain the overall stability of the structure even when the ground settles or deforms. This feature makes it perform well in slope protection, bank protection and other projects.
Excellent water permeability: Its unique grid structure allows water to flow freely, which is beneficial to soil and water conservation and the balance of the ecosystem. This water permeability can also effectively reduce hydrostatic pressure and increase the stability of the structure.
Strong corrosion resistance and durability: The PVC plastic coating on the surface provides good corrosion resistance for the hexagonal gabion mesh, which can resist the erosion of various chemicals and extend its service life. At the same time, the PVC coating can also increase the color selection of the mesh material, so that it can better integrate into the surrounding environment.
Convenient construction and low cost: The construction of PVC hexagonal gabion mesh is relatively simple, without the need for special technology or equipment, which reduces the difficulty and cost of construction. In addition, its foldable and easy-to-transport characteristics further reduce transportation and installation costs.
Application
PVC hexagonal gabion basket is a material widely used in river, bank and roadbed slope protection structures. Its application scenarios mainly include:
River protection: PVC hexagonal gabion bakset is used for river protection, which can effectively prevent the river bank from being damaged by water flow, wind and waves, and at the same time realize the natural convection exchange function between the water body and the soil under the slope to achieve ecological balance. By planting green on the slope, the landscape and greening effects can be added.
Roadbed slope protection: PVC hexagonal gabion basket is also suitable for the protection of roadbed slopes. By using this material, soil corrosion and erosion can be effectively controlled to protect the stability of the roadbed.
Control and guide rivers and floods: PVC coated gabion can be used for slope support, foundation pit support, and can also be used for river anti-scouring maintenance and reservoir interception. It can control and guide rivers and floods, prevent soil erosion, protect bridges, soil consolidation structures, coastal defense projects, etc.
Rockfall protection: PVC coated gabion mesh has good structural integrity, strong water permeability and good impact resistance. When used as slope protection or retaining wall engineering, it can effectively protect the slope soil from being damaged, and is particularly suitable for rockfall protection. In summary, PVC hexagonal gabion mesh is widely used in various water conservancy projects due to its unique structure and function. It can not only effectively protect the stability of river banks and roadbeds, but also promote ecological balance and beautify the environment.
Product specification
Aperture
(mm)Wire Diameter
(mm)Pvc Coated Wire Diameter
Inner/outer(mm)Gabion Basket
Size(m)Gabion Mattress
Size(m)60×80 φ2.0-2.8 φ2.0/3.0-2.8/3.8 1×1×0.5m
1×1×1m
2×1×0.5m
2×1×1m
3×1×0.5m
3×1×1m
4×1×0.5m
4×1×1m
available custom1×1×0.3m
2×1×0.3m
3×1×0.3m
4×1×0.3m
4×2×0.3m
6×2×0.3m

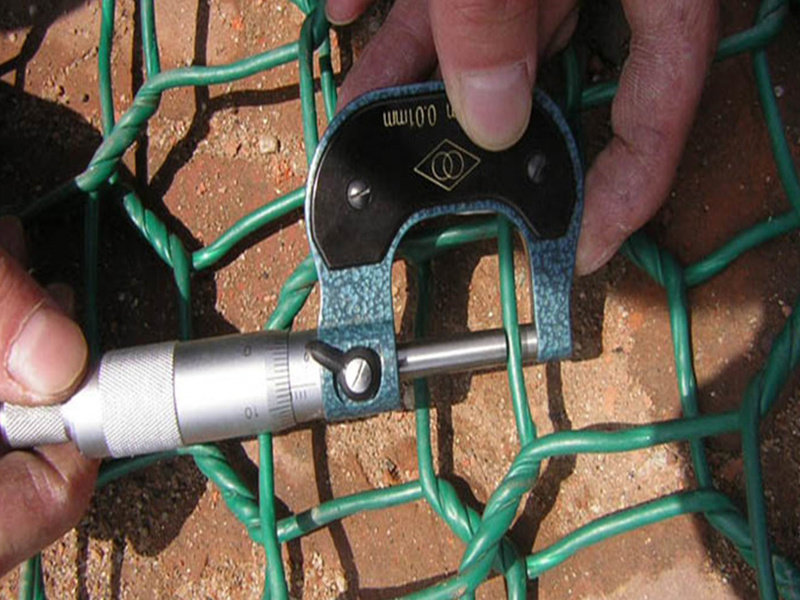

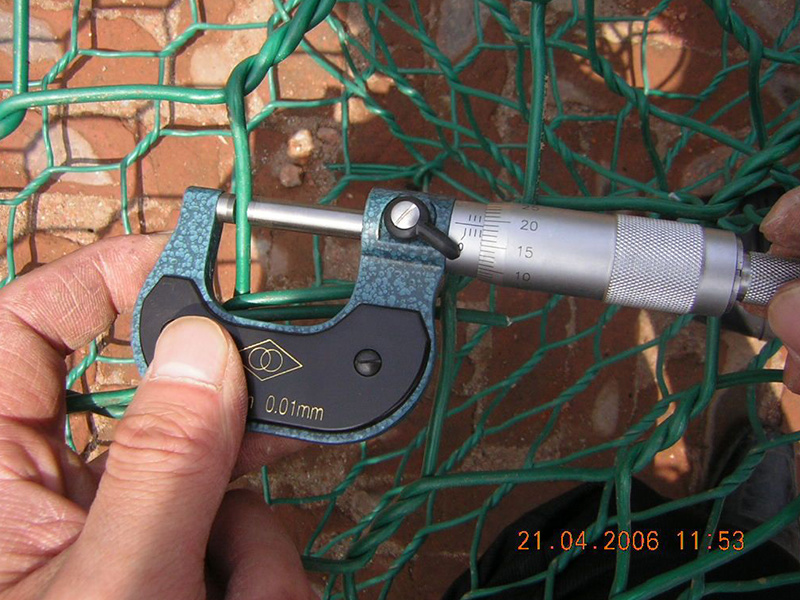

available custom80×100 φ2.2-3.2 φ2.2/3.2-3.0/4.0 80×120 φ2.2-3.2 φ2.2/3.2-3.0/4.0 100×120 φ2.4-3.5 φ2.4/3.4-3.2/4.2 100×150 φ2.4-3.5 φ2.4/3.4-3.2/4.2 120×150 φ2.7-4.0 φ2.7/3.7-3.5/4.5 Measurement
Production

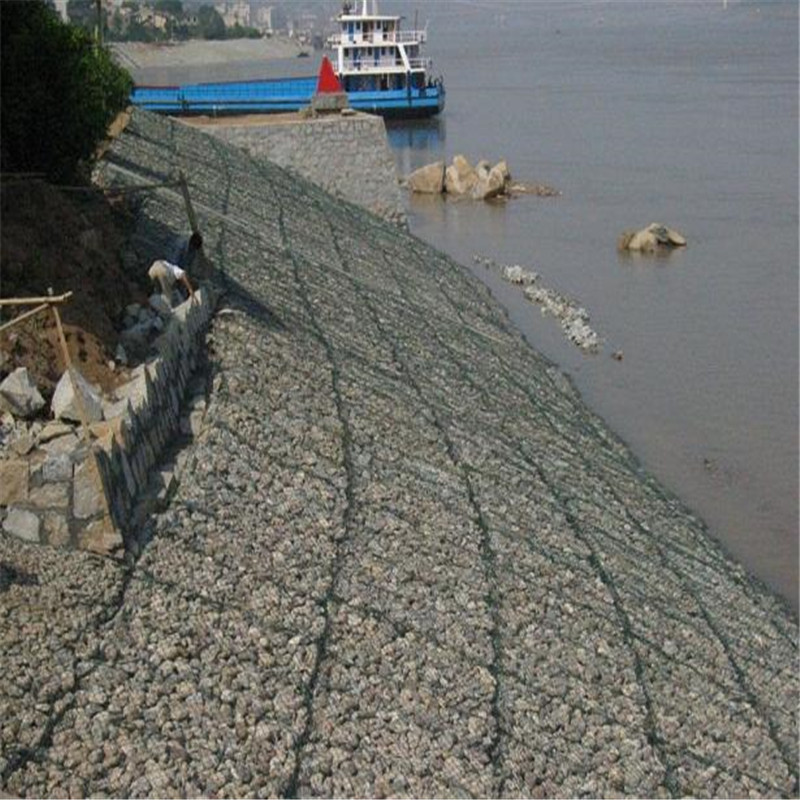

Application

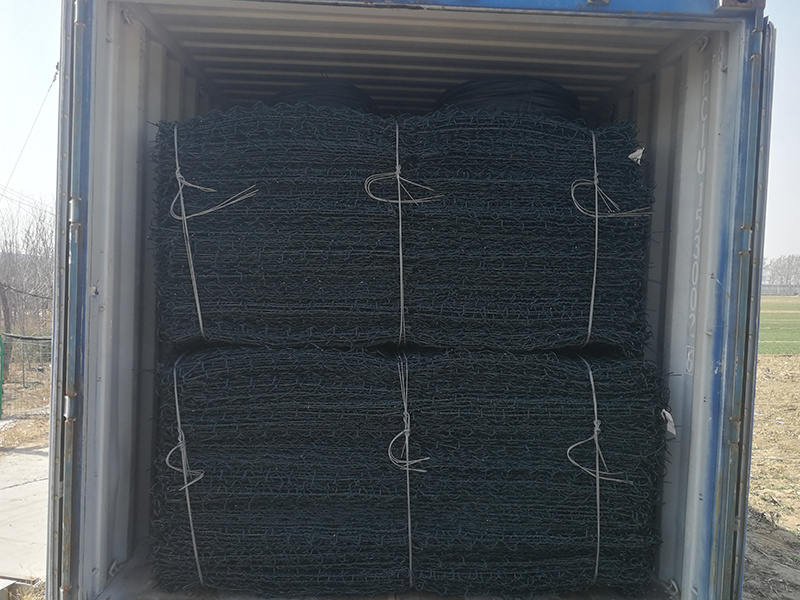

Packing
Shijiazhuang Chengsen Trade Co., Ltd. is a leading enterprise in manufacturing PVC hexagonal gabions, with remarkable advantages as follows:
High-Quality Materials: We use top-grade low-carbon steel wires as the base material. These wires are first galvanized to enhance corrosion resistance and then covered with a thick layer of PVC. The PVC coating, with an outer diameter typically ranging from 3.0mm to 4.5mm, not only provides excellent protection against rust and oxidation but also increases the wire's durability, ensuring long-term performance even in harsh environments.
Outstanding Product Features:
Superior Corrosion Resistance: The double protection of galvanized steel and PVC coating makes our PVC hexagonal gabions highly resistant to corrosion. They can withstand the test of various weather conditions, high humidity, and chemical exposure, suitable for applications in rivers, coastal areas, and industrial sites.
Good Flexibility and Strength: The hexagonal mesh structure, combined with the flexibility of the PVC-coated wires, endows the gabions with the ability to adapt to ground settlement and small terrain changes without cracking or deforming.
Meanwhile, the high-tensile steel wires inside guarantee the overall strength, capable of withstanding significant external forces.
Diverse Color Options: Our PVC hexagonal gabions are available in a wide range of colors, such as green, gray, and black. This allows for better integration with different landscapes and project requirements, whether it's for environmental protection projects, garden decorations, or infrastructure construction.
Excellent Permeability: The open hexagonal mesh design and the gaps between the filled stones enable water to permeate freely. This feature helps to relieve hydrostatic pressure, prevent soil erosion, and maintain the natural water cycle, making them ideal for water conservancy and slope protection projects.
Comprehensive Services:
Customization: We understand that different projects have unique needs. Thus, we offer customized solutions, including customizing the size, shape, and color of PVC hexagonal gabions according to customers' specific requirements.
Professional Consultation: Our experienced team provides professional pre-sales consultation, helping customers select the most suitable gabion products for their projects. We offer detailed product information, installation guidance, and maintenance advice.
Efficient Delivery: With a well-established logistics network, we ensure timely delivery. We work closely with reliable freight forwarders to ship products to destinations around the world, minimizing delivery time and ensuring that customers receive their orders on schedule.
Over the years, our PVC hexagonal gabions have been exported to numerous countries and regions, winning wide acclaim from customers for their high quality and excellent performance. Choose Shijiazhuang Chengsen Trade Co., Ltd. for your PVC hexagonal gabion needs, and we will provide you with top-notch products and services.
