Galvanized hexagonal gabion
Contact CHENGSEN for Shipping, delivery, and payments information.
Products Category
Tag list
- 产品描述
-
Product Introduction
Galvanized hexagonal gabion basket is a mesh structure woven with high-quality low-carbon steel wire. The diameter of the steel wire can reach 2.0mm-4.0mm. This mesh is usually also protected by hot-dip galvanizing. The thickness of the galvanized protective layer can be made according to customer requirements. The mesh is composed of multiple hexagonal units, each of which is connected to each other by metal wires to form a strong and flexible overall structure. The interior can be filled with heavy objects such as stones and concrete blocks as needed to enhance its stability and load-bearing capacity.
Features
High strength and durability: Galvanizing treatment significantly improves the corrosion resistance and anti-aging capabilities of the gabion net, which can be used for a long time in harsh environments without being easily damaged.
Flexibility: The structure of the hexagonal gabion basket makes it flexible and adaptable, and can be cut and assembled according to terrain and engineering needs to form protective structures of various shapes and sizes.
Eco-friendly: The gaps between the stones filled inside the gabion provide conditions for plant growth, helping to achieve the dual effects of protection and greening.
Economical and practical: Compared with traditional protective structures, hexagonal galvanized gabion mesh has the advantages of simple construction, low cost, and convenient maintenance.
Application
Hexagonal galvanized gabion mesh has a wide range of applications in many fields, mainly including:
Embankment engineering: used in scenarios such as embankment slope protection and flood control to prevent water flow from eroding and eroding the embankment structure.
Slope support: In slope support projects in mountainous areas, hills and other areas, it provides a stable support structure to prevent slope landslides and collapses.
Ecological restoration: In projects such as river management and wetland protection, it promotes vegetation growth and stabilizes the soil environment to achieve the goals of ecological restoration and environmental protection.
Landscape: As a landscape element, it is integrated into projects such as urban greening and park construction to form a unique landscape effect and improve environmental quality.
Product specification
Aperture
(mm)Wire Diameter
(mm)Pvc Coated Wire Diameter
Inner/outer(mm)Gabion Basket
Size(m)Gabion Mattress
Size(m)60×80 φ2.0-2.8 φ2.0/3.0-2.8/3.8 1×1×0.5m
1×1×1m
2×1×0.5m
2×1×1m
3×1×0.5m
3×1×1m
4×1×0.5m
4×1×1m
available custom1×1×0.3m
2×1×0.3m
3×1×0.3m
4×1×0.3m
4×2×0.3m
6×2×0.3m

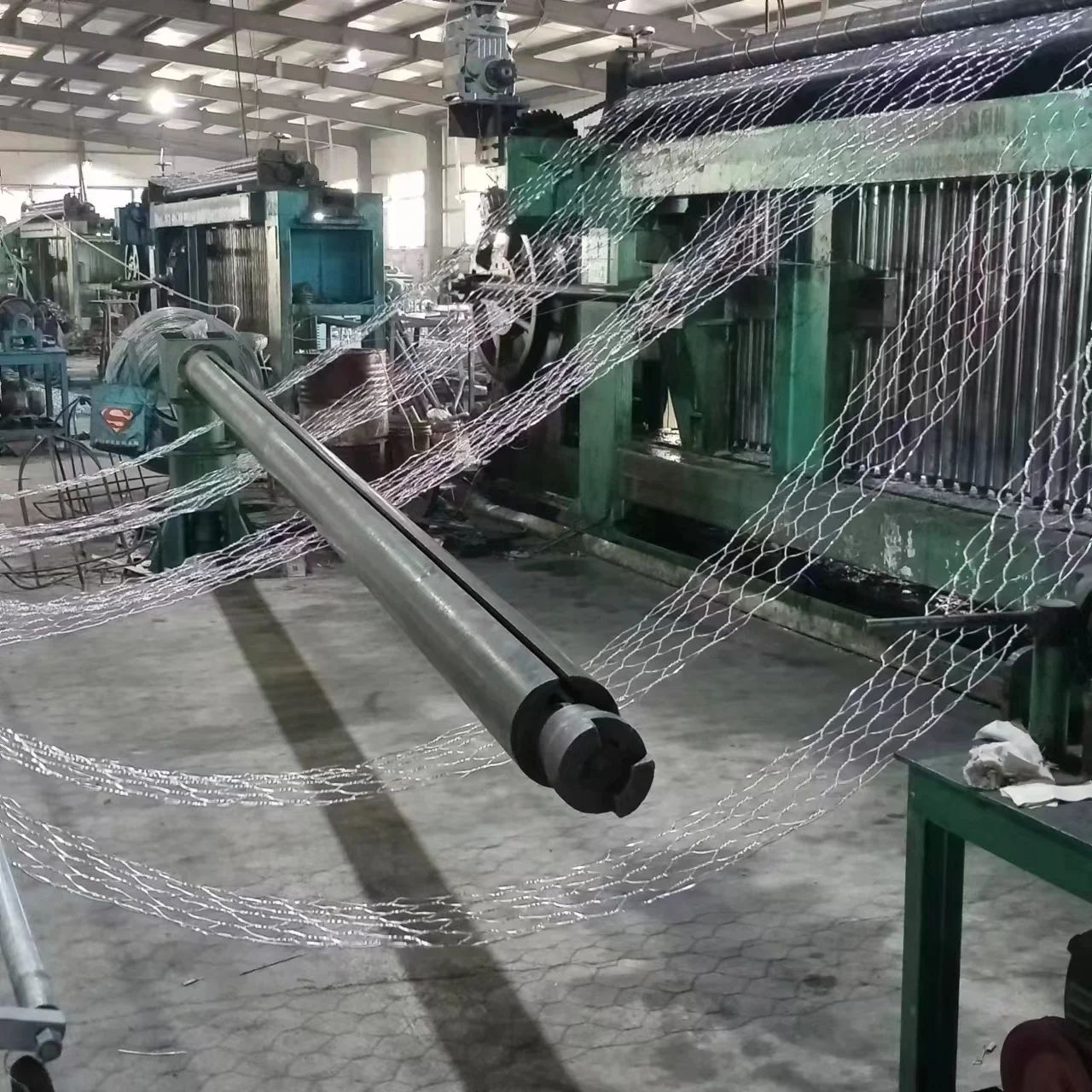

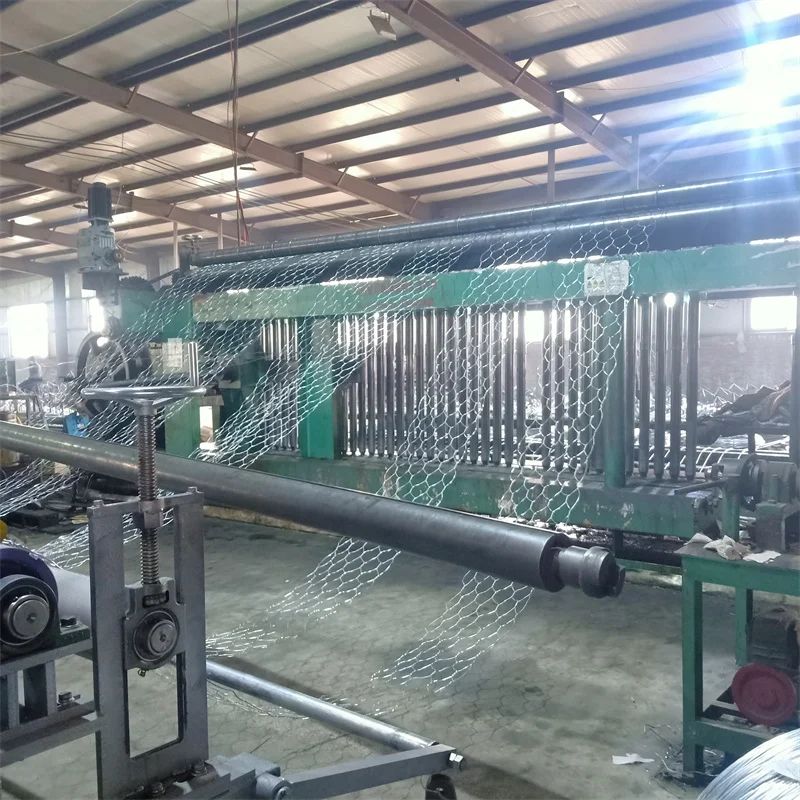

available custom80×100 φ2.2-3.2 φ2.2/3.2-3.0/4.0 80×120 φ2.2-3.2 φ2.2/3.2-3.0/4.0 100×120 φ2.4-3.5 φ2.4/3.4-3.2/4.2 100×150 φ2.4-3.5 φ2.4/3.4-3.2/4.2 120×150 φ2.7-4.0 φ2.7/3.7-3.5/4.5 Production

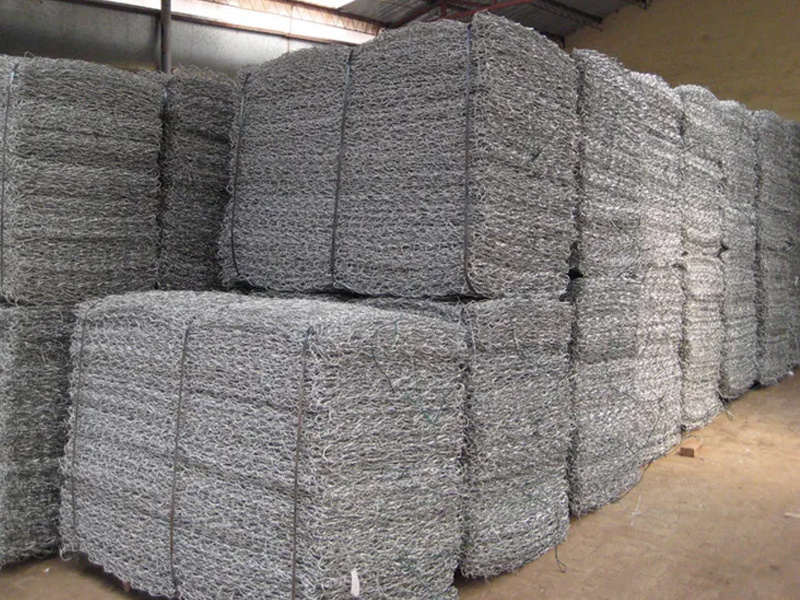

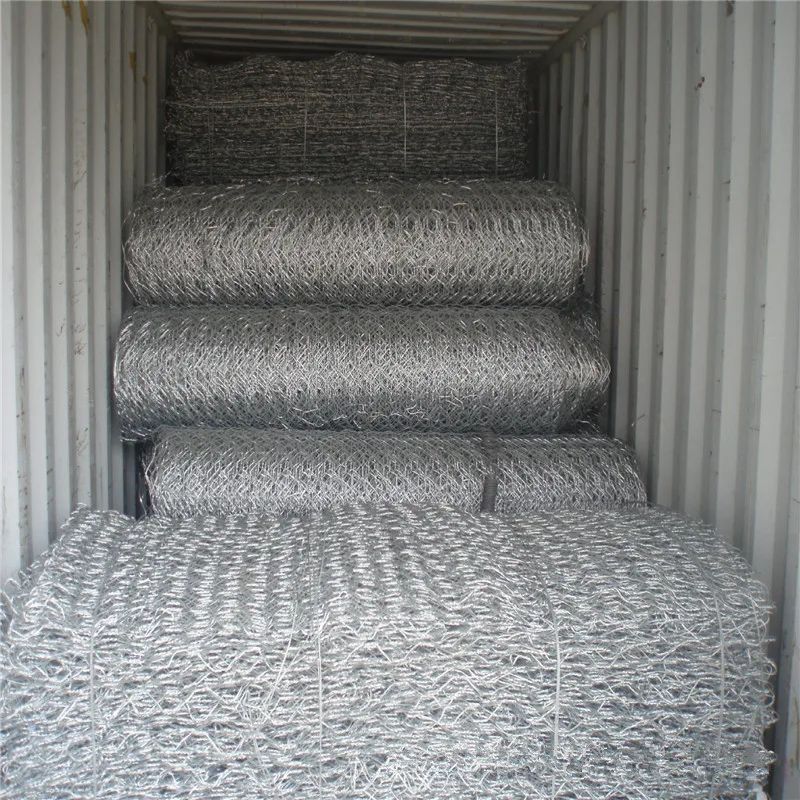

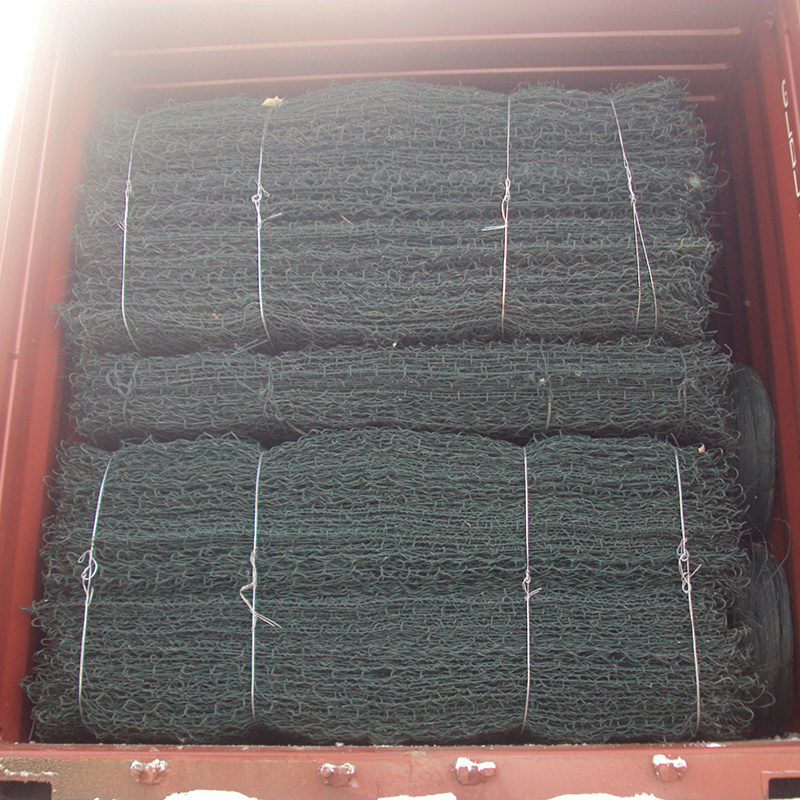

Shipment
Shijiazhuang Chengsen Trade Co., Ltd. stands out as a reliable manufacturer of galvanized hexagonal gabions, with core advantages that meet diverse project needs:
Premium Galvanized Materials: We adopt high-quality low-carbon steel wires, which undergo strict hot-dip galvanization or electro-galvanization. The galvanized layer (with zinc coating thickness up to 80-200g/m²) forms a strong barrier against rust and corrosion, ensuring the gabions maintain structural stability even in wet, coastal, or industrial environments for over 10 years.Exceptional Product Performance:
Strong Load-Bearing Capacity: The hexagonal mesh structure, woven from high-tensile galvanized wires, enables the gabions to bear heavy loads (such as filled stones and external pressure) without deformation, making them ideal for slope reinforcement and retaining walls.
Excellent Durability: The galvanized layer’s resistance to oxidation and weathering ensures the gabions resist wear from wind, rain, and temperature changes, reducing maintenance costs for long-term use.
Easy Installation: The gabions come in pre-cut sizes (e.g., 1m×1m×2m, 2m×1m×3m) and flexible mesh design, allowing quick assembly on-site. No complex tools are required, saving time and labor for construction teams.
Eco-Friendly Feature: The open mesh structure promotes water circulation and soil ventilation, supporting plant growth around the gabions. This makes them suitable for ecological restoration projects like riverbank protection and wetland construction.
Efficient Production & Quality Control: Equipped with advanced mesh-weaving machines and automated galvanizing lines, we achieve high production efficiency.
Customer-Centric Services:
Customized Specifications: We offer tailored solutions, adjusting mesh size (e.g., 50×50mm, 80×100mm), wire diameter (2.0-4.0mm), and gabion dimensions to match specific project requirements (e.g., highway slope protection, reservoir reinforcement).
Reliable Logistics: With long-term cooperation with global freight partners, we ensure timely delivery—whether for small-batch samples or large-volume bulk orders—to destinations across Asia, Africa, Europe, and the Americas.
Our galvanized hexagonal gabions have been widely applied in water conservancy, transportation, and ecological projects worldwide, earning trust from customers for quality and reliability. For your galvanized hexagonal gabion needs, Shijiazhuang Chengsen Trade Co., Ltd. is your dependable partner.
