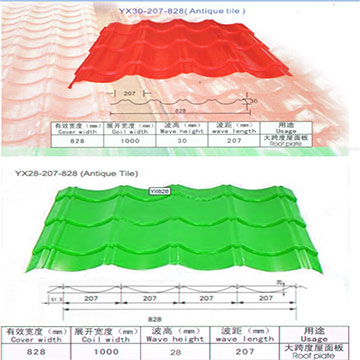

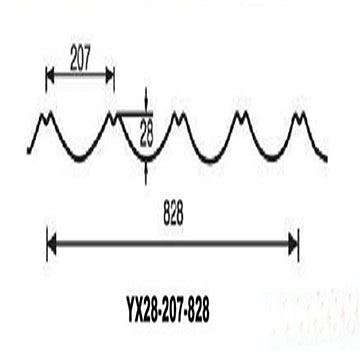

Model |
YX28-207-828 |
Effective width |
828mm |
overall width |
905mm |
Coil width before corrugated |
1000mm |
Thickness |
0.25–0.7mm |
Wave height |
28mm |
Wave width |
207mm |
Model |
YX28-207-1028 |
Effective width |
1028mm |
Total width |
1130mm |
Coil width before corrugated |
1200mm |
Thickness |
0.25–0.7mm |
Wave height |
28mm |
Wave width |
207mm |
Length |
3.6 meter,7.2 meter,8.1meter,etc. |
Color |
white,blue,red,green,red,yellow,orange,etc as per RAL card color;zinc color, stainless steel color,aluminium color. |
Tolerance |
Thickness tolerance:±0.02mm;Length tolerance:±2mm |
Zinc coated |
30–275g/sqm,as requested. |
Face paint |
PE; HDP; SMP; PVDF;Two layers; 20-25um; |
Back paint |
PE grey white color One layer 5-7um |
Package |
1.No packing |
2.Firstly plastic paper or kraft paper, then fastened steel strap. |
|
3.pallets |
|
Loading for reference |
20GP:19.5–26metric tons; 40GP:22–26.5 metric tons. |
Delivery time |
As per order quantity;Within 15 days for One 20GP container. |
Usage |
Roof,wall,fence,ceiling and door |
Chemical Composition
GRADE |
C |
Si |
Mn |
P |
S |
Ti |
SGCC/DX51D+Z |
≤0.10 |
≤0.50 |
≤0.60 |
≤0.10 |
≤0.030 |
≤0.020 |
DX52D+Z |
≤0.10 |
≤0.50 |
≤0.60 |
≤0.10 |
≤0.030 |
≤0.020 |
SGCD/DX53D+Z |
≤0.10 |
≤0.30 |
≤0.50 |
≤0.05 |
≤0.030 |
≤0.020 |
SGCE/DX54D+Z |
≤0.10 |
≤0.30 |
≤0.30 |
≤0.03 |
≤0.020 |
≤0.020 |
DX56D+Z |
≤0.10 |
≤0.30 |
≤0.30 |
≤0.03 |
≤0.020 |
≤0.020 |
Structural |
≤0.20 |
≤0.60 |
≤1.70 |
≤0.10 |
≤0.045 |
|
Mechanical Properties
Grade |
Yield Strength MPa |
Tensile Strength MPa |
Elongation % |
SGCC(DX51D+AZ) |
≥205 |
≥270 |
≥22 |
SGCD(DX52D+AZ) |
≥140 |
≥270 |
≥38 |
S250GD+AZ |
≥250 |
≥330 |
≥19 |
S350GD+AZ |
≥350 |
≥420 |
≥16 |
